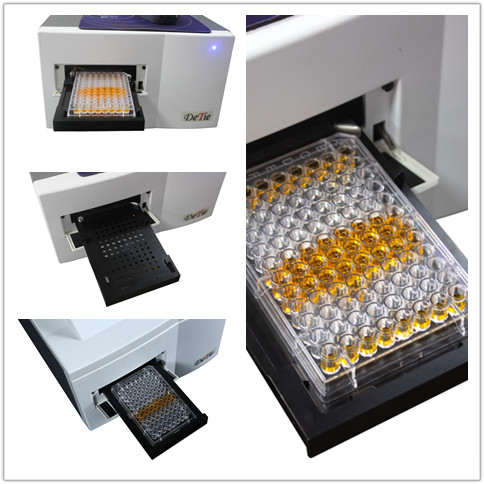

Microplate Reader

◇ Industrial level control system,wide voltage input design.

◇ Eight channel optical fiber measurement system, imported detector.

◇ Center positioning function, accurate and reliable.

◇ Three kinds of linear vibration plate function.

◇ Unique open Cut-Off judgment formula,Think what you think.

◇ End point method, two point method, dynamics, single / dual wavelength test mode.

◇ Provide rich curve fitting equation,be suitable for all kinds of laboratory projects

HBS-1096B Microplate Reader provide 12 months of quality assurance.

Main Parameters

Lamp：DC12V 22W Tungsten halogen lamp

Optical path:8 channel vertical light path system

Wavelength range：400-1000nm(Selection:340-1100nm)

Filter:Default configuration 405、450、492、630nm, Can be installed up to 15 filters.

Reading range:0-4.000Abs

Linear range:0-3.000Abs

Resolution: 0.001Abs

Accuracy:≤±0.01Abs

Stability:≤±0.003Abs

Repeatability:≤0.3%

Incubation function:room temperature+4℃~50℃，accuracy 37℃±0.5℃（Selection）

Vibration plate :Three kinds of linear vibration plate function, Adjustable 0-255 seconds

Instrument operation:connect computer operation,Elisa reader software control .

Software: Professional software, Can store 200 groups  program, 100000 sample results,More than10 kinds of curve fitting equation.

Power input:AC100-240V  50-60Hz

Weight:10Kg

Size:444mm(L)*320mm(W)*308mm(H)
